SPECIFICATIONS

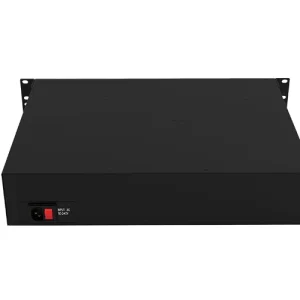

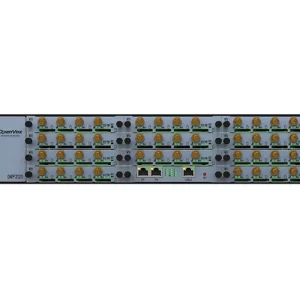

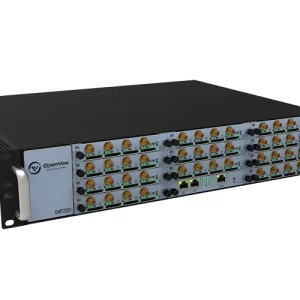

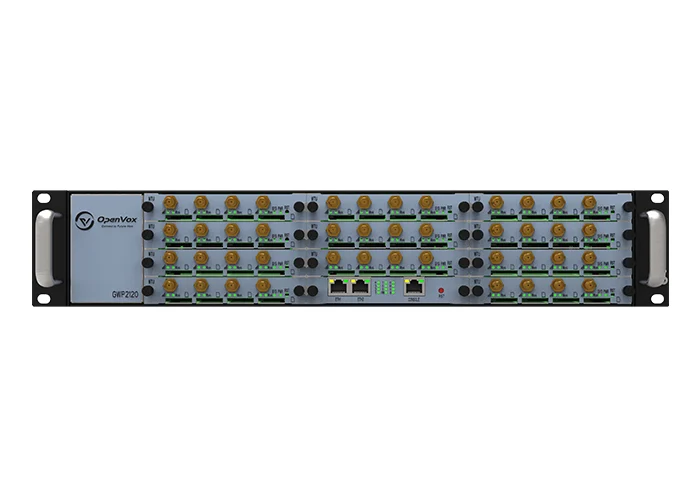

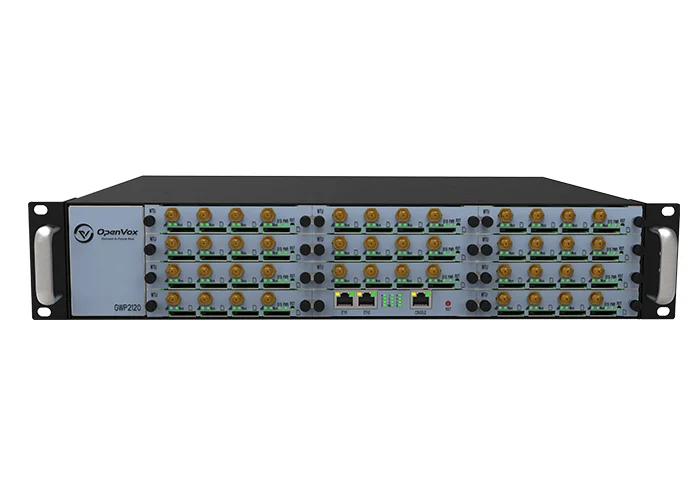

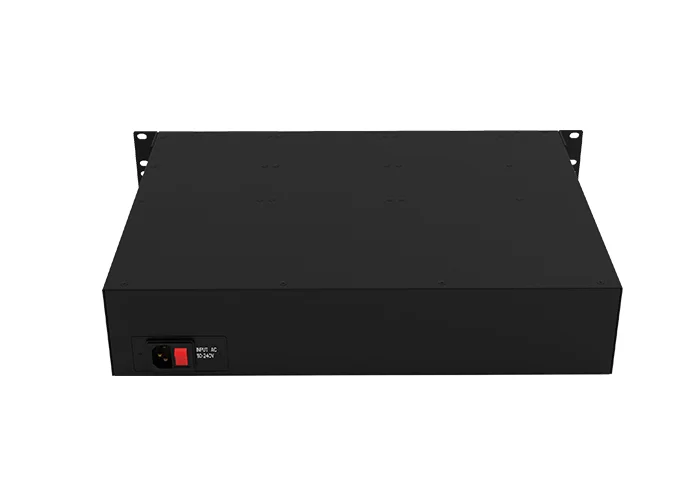

VS-GWP2120 Wireless Gateway which can be compatible with a series of modules(2G/3G/4G), enabling interconnection between GSM/WCDMA/LTE network and VoIP network safely and efficiently. There are two models with the new Voxstack Series Gateway, VS-GWP1600 and VS-GWP2120 Wireless Gateway. The VS-GWP2120 Wireless Gateway can provide up to 11 plug-in modules that could support from 4 to 44 GSM/WCDMA/LTE channels. With the unique design of the VS-GWP2120 wireless gateway, it can support hot-swap for SIM cards and GSM/WCDMA/LTE wireless gateway modules.
The wireless gateway is designed with a LAN switch board that provides stackability on the hardware upgrade. Users can simply add or remove the modules for hardware expansion or exchange. With a friendly GUI and unique modular design, users may easily set up their customized gateway. Also, secondary development can be completed through API. It can provide users with more diverse telecommunication access methods and help users reduce communication costs.
The VS-GWP2120 Wireless Gateway can bring excellent HD voice service with multiple codecs, including G.711A, G.711U, G.722, G.726, G.729A, GSM, and also flexible SMS service with SMS API. It uses the standard SIP protocol and is compatible with leading IMS/NGN platforms, IPPBX, and SIP servers supporting most of the VoIP operating platforms such as Asterisk, 3CX, FreeSWITCH SIP server, BroadSoft, etc.
Technical Specifications:
- Up to 44 GSM/WCDMA/LTE Channels
- 1 SIM card per GSM/WCDMA/LTE channel
- 2 10/100M LAN interfaces
- Up to 44 Standard SMA-K interfaces
- Storage temperature range: -20~70℃
- Operation temperature range: 0~50℃
- Operation humidity range: 10%~90% non-condensing
- Power source: 100-240V/1-2A
- Power: 75W
- Dimension: 43.4cm*30cm*8.8cm
- Weight:
VS-GWP2120: 5600g
VS-GWM420G: 162g
VS-GWM420W: 170g
VS-GWM420L: 178g
Software & Platform:
- Linux OS
Certification
- CE
| VS-GWP2120 Wireless Gateway | |||||||
| Module Type | GSM | WCDMA/LTE | |||||
| Band | GSM 850/900/1800/1900MHz | China/India LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B8 TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz |
EMEA/Korea/Thailand LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
Australia/New Zealand/Taiwan/Brazil LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
|||
| Channel Number | 44 | ||||||
| Weight | 6.5kg | ||||||
| Dimension | 434*330*88mm(length*width*height) | ||||||
| Power | 75W(Single AV power supply) | ||||||
| SIM Card | Hot-swap | ||||||
| Network Port | 2*10/100M | ||||||
| Console | 1 | ||||||
| Operation Temperature | 0 °C ~ 50 °C | ||||||
| Operation Humidity Range | 10% ~ 90% | ||||||
| Storage Temperature Range | -20 °C ~ 70 °C | ||||||
